Hokkaido`s genuine heating
Water-filled door
Energy-saving design
& ease of explotiation
are reputation of this boiler!
●Features of the heater
As a result of many years of research and development in cold climate of Hokkaido, the heater was completed which exhibits thermal efficiency of the undustry #1(hot water citculation).
Equip total 4 steps of heat collection panel for steps at the upper part & 1 step at the lower part
We coeld have incredible up the thermal efficiency (up as 2 times as thermal collection efficiency) as we changed fire grate to heat collection pipe.
Much more up of the inside thermal efficiency by water in door.
Model SWP-600W SWP-1000W SWP-1000SW SWP-1200SW
Heating method warm water circulation
Amount of tsubo over 70tsubo about 100tsubo 100-120tsubo 120-180 tsubo
invest. amount about 70skids about 100 about 100 about 120
Combusting forced draft
Burning time about 8~10 hours about 8~14
Heating area Square meter( ㎡ )
Voltage 100V(200V)
Electric cuurent 7A(2.2)
p
ump
Burner
Motor 400W
Discharge 260ℓ/min.
Diameter 40A(11/2B)
Model SG-10(※option)
Fuel kerosene
Combustion 6ℓ/h
Door size 63×63 ㎝ 90×85 ㎝ 90×85 ㎝ 110×85 ㎝
Room size 90 ㎝φ 98×124 ㎝ 98×124 ㎝ 110×120 ㎝
Main body 110×130×125 110×130×125 110×130×125 110×130×125
Exhaust 22 ㎝φ
Capacity about 600ℓ about 900ℓ about 900ℓ qabout 1000ℓ
Weight about 650 ㎏ about 800 ㎏ about 840 ㎏ about 1020 ㎏
Attachment
Circulation pump & propeller fan for it
Expansion tank & controlling board
Exhaust stack set & stainles exhaust stack set
Option

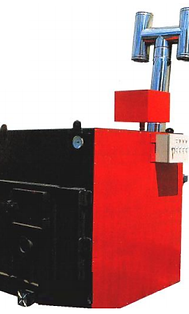

SWP-600W
SWP-1200SW
●Features of the
heating machine
・Enable to found at outside because of using thick heat insulating materials(5cm). Indoor effective utilization.(S type only)
・By automatic air adjustment, burning for a long time as suitable temperature. (SWP-600 & S type)
・Easy managing temperature by installing a burner(option)
・Not to be filled with smoke because it has the second input port
・Saving energy design as automatic burning when temperature goes down. Unnecessary to worry about circulation cold water caused by thermo.
・Each type of model is steel plate made with plating
・Spread type of no heat insulating materials is also available(600・1000)
・Thermal efficiency is getting better as collection are is big
・Calorie of proportion of investing the number of fire wood to weight
Assist Japan Co., Ltd
Zip code 320-0846
2-4-42 Takinohara, Utsunomiya city, Tochigi
TEL:028-635-8718 FAX:028-635-8778
Free dial:0120-35-8718(for domestic only)
Please contact us
